10 Amp Charge Controller
In store sales only. No shipping.

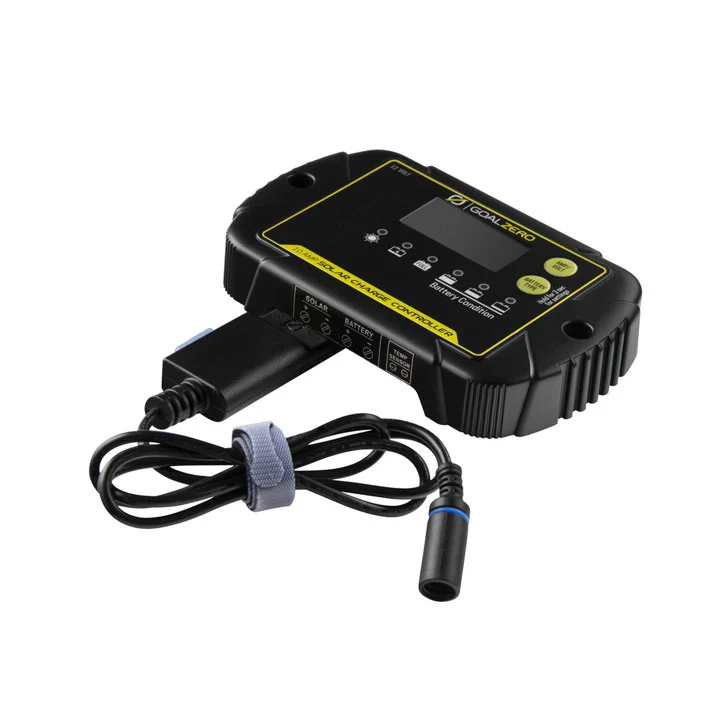

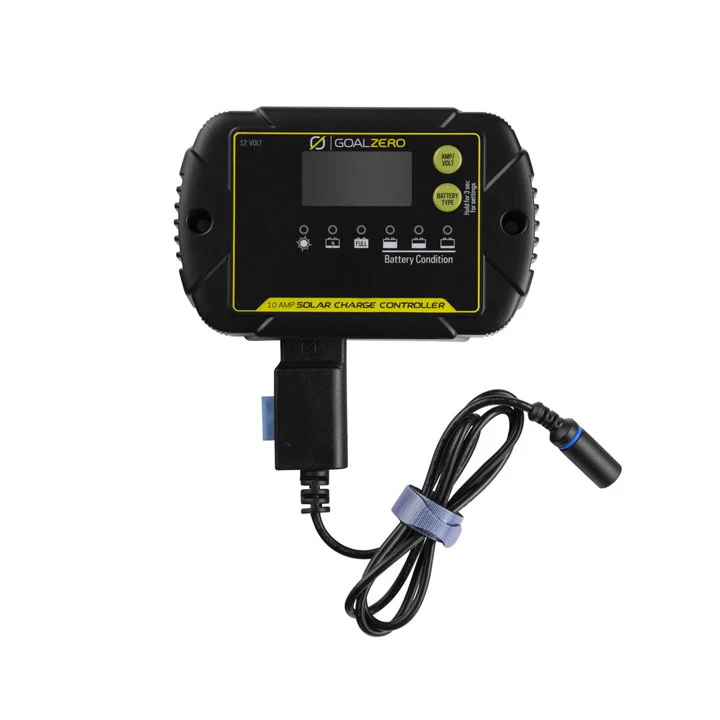

Monitor and regulate solar input for 12V batteries with the 10 Amp Charge Controller. Designed to integrate seamlessly with Goal Zero solar panels, the charge controller comes with a pre-installed 8mm solar connector and an easy-to-read LED screen. Equipped with an IP65 rating, the charge controller is weather resistant and dustproof, allowing for protection against the elements when powering off-grid adventures or outdoor equipment.
10 AMP CHARGE CONTROLLER
- Designed to monitor and regulate solar input for 12V batteries. For solar charging with 100 watts and below, we recommend the 10 Amp Charge Controller. For solar charging with more than 100 watts, we recommend theĀ 20 Amp Charge Controller
- Charge Controller comes with an integrated 8mm Goal Zero solar connector. To connect and charge a 12V battery, you must purchase theĀ Spade to SAE CableĀ and additional cable adaptors. We recommend either theĀ SAE to Ring TerminalĀ orĀ SAE to Alligator Clip
- Will not work with Yeti X Power Supply
- Input/Output terminal: M5 terminals
- Input Port: Solar Port: (blue, 8mm): 14-22.5V up to 10A
- Fuse: 15A replaceable
- Charge Controller: PWM
- Rated solar panel amps GZ-10: 10A
- Normal input solar cell array voltage: 15-22V
- Max solar cell array voltage (output has no load): 25V
- Lowest operating voltage at solar or battery side: 8V Minimum
- Charging Characteristics:
- Start Voltage at 25Ā°C: 3-10V
- Charge Voltage at 25Ā°C:
- LTO battery: 14.0V
- Gel battery: 14.1V
- LiFePO4 battery: 14.4V
- Charge Voltage at 25Ā°C: AGM battery-14.4V
- WET battery: 14.7V
- Calcium battery: 14.9V
- Equalizing Voltage at 25Ā°C: WET or Calcium battery-15.5V
- Float Voltage at 25Ā°C:
- Gel, AGM, WET, Calcium batteries-13.6V
- LTO and LiFePO4 batteries-13.4V
- Battery temperature compensation coefficient: -24mV/Ā°C
Ā
- Product SKU: 96100
- Weight: 14.4oz (408g)
- Dimensions: 6.10 x 3.90 x 1.02in (15.5 x 9.91 x 2.6cm)
- IP Grade: IP65
- Spade to 8mm Cable Length: 3ft
- Operating temperature: -25 to 50Ā°C/ -13 to 122Ā°F
- Warranty: 12 Months
- Certs: IC, FCC, CE-EMC, CE-LVD
Original: $69.95
-65%$69.95
$24.48Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
In store sales only. No shipping.
Monitor and regulate solar input for 12V batteries with the 10 Amp Charge Controller. Designed to integrate seamlessly with Goal Zero solar panels, the charge controller comes with a pre-installed 8mm solar connector and an easy-to-read LED screen. Equipped with an IP65 rating, the charge controller is weather resistant and dustproof, allowing for protection against the elements when powering off-grid adventures or outdoor equipment.
10 AMP CHARGE CONTROLLER
- Designed to monitor and regulate solar input for 12V batteries. For solar charging with 100 watts and below, we recommend the 10 Amp Charge Controller. For solar charging with more than 100 watts, we recommend theĀ 20 Amp Charge Controller
- Charge Controller comes with an integrated 8mm Goal Zero solar connector. To connect and charge a 12V battery, you must purchase theĀ Spade to SAE CableĀ and additional cable adaptors. We recommend either theĀ SAE to Ring TerminalĀ orĀ SAE to Alligator Clip
- Will not work with Yeti X Power Supply
- Input/Output terminal: M5 terminals
- Input Port: Solar Port: (blue, 8mm): 14-22.5V up to 10A
- Fuse: 15A replaceable
- Charge Controller: PWM
- Rated solar panel amps GZ-10: 10A
- Normal input solar cell array voltage: 15-22V
- Max solar cell array voltage (output has no load): 25V
- Lowest operating voltage at solar or battery side: 8V Minimum
- Charging Characteristics:
- Start Voltage at 25Ā°C: 3-10V
- Charge Voltage at 25Ā°C:
- LTO battery: 14.0V
- Gel battery: 14.1V
- LiFePO4 battery: 14.4V
- Charge Voltage at 25Ā°C: AGM battery-14.4V
- WET battery: 14.7V
- Calcium battery: 14.9V
- Equalizing Voltage at 25Ā°C: WET or Calcium battery-15.5V
- Float Voltage at 25Ā°C:
- Gel, AGM, WET, Calcium batteries-13.6V
- LTO and LiFePO4 batteries-13.4V
- Battery temperature compensation coefficient: -24mV/Ā°C
Ā
- Product SKU: 96100
- Weight: 14.4oz (408g)
- Dimensions: 6.10 x 3.90 x 1.02in (15.5 x 9.91 x 2.6cm)
- IP Grade: IP65
- Spade to 8mm Cable Length: 3ft
- Operating temperature: -25 to 50Ā°C/ -13 to 122Ā°F
- Warranty: 12 Months
- Certs: IC, FCC, CE-EMC, CE-LVD
